About NEWTEK PSA

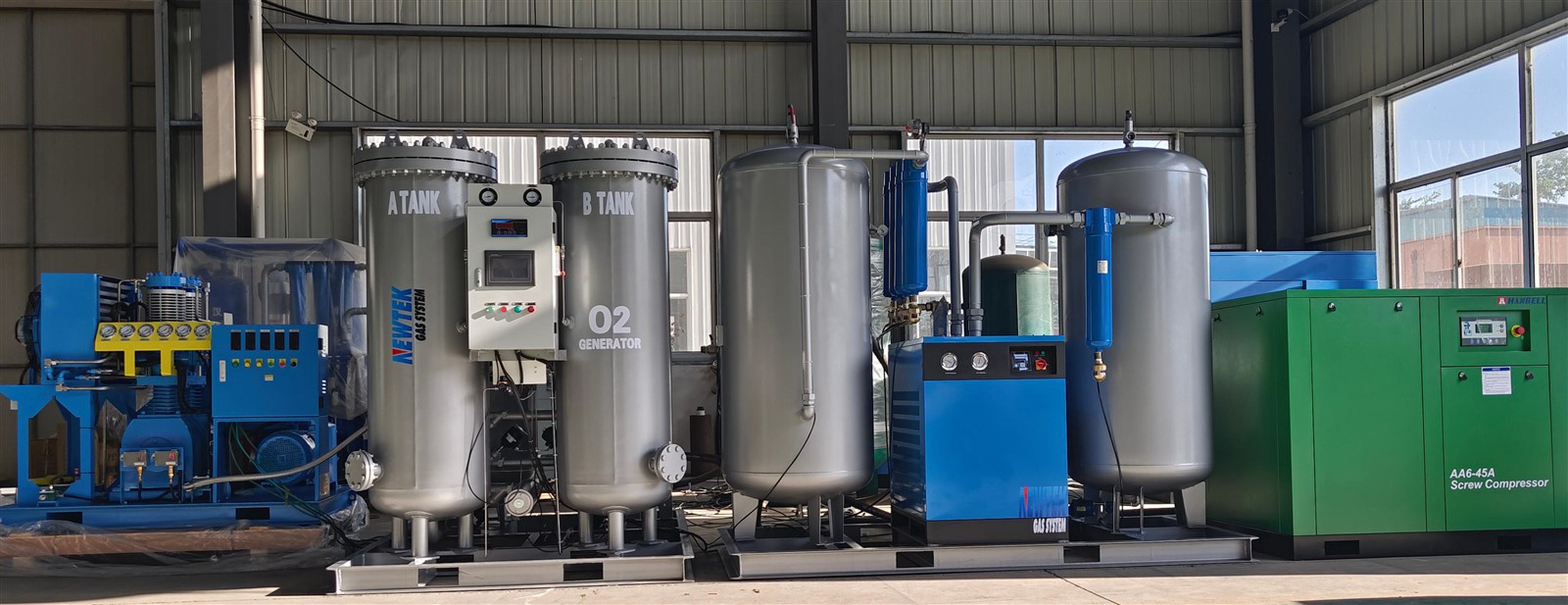

On-site PSA Oxygen & Nitrogen Generation Solutions
Reliable. Efficient. Easy to Operate.
The NEWTEK PSA specializes in the design and supply of on-site PSA oxygen and nitrogen generators, delivering reliable and efficient gas solutions for a wide range of industrial applications.
Our PSA systems are engineered for stability, ease of operation, and long-term performance, providing customers with a dependable alternative to traditional gas supply methods.
What We Offer
NEWTEK PSA provides standardized and customized PSA systems, including:
PSA Oxygen Generators
PSA Nitrogen Generators
Integrated air compression and purification systems
Turnkey on-site gas solutions
Our systems cover a wide range of flow rates and purity levels, suitable for industries such as manufacturing, healthcare, food processing, aquaculture, and laboratories.
Why Choose NEWTEK PSA
Every system is designed with practical operation in mind, ensuring reliability throughout its service life.
Proven and standardized system configurations
Stable performance with continuous operation capability
Efficient energy consumption and low operating cost
Compact design and easy installation
Fast delivery and responsive technical support

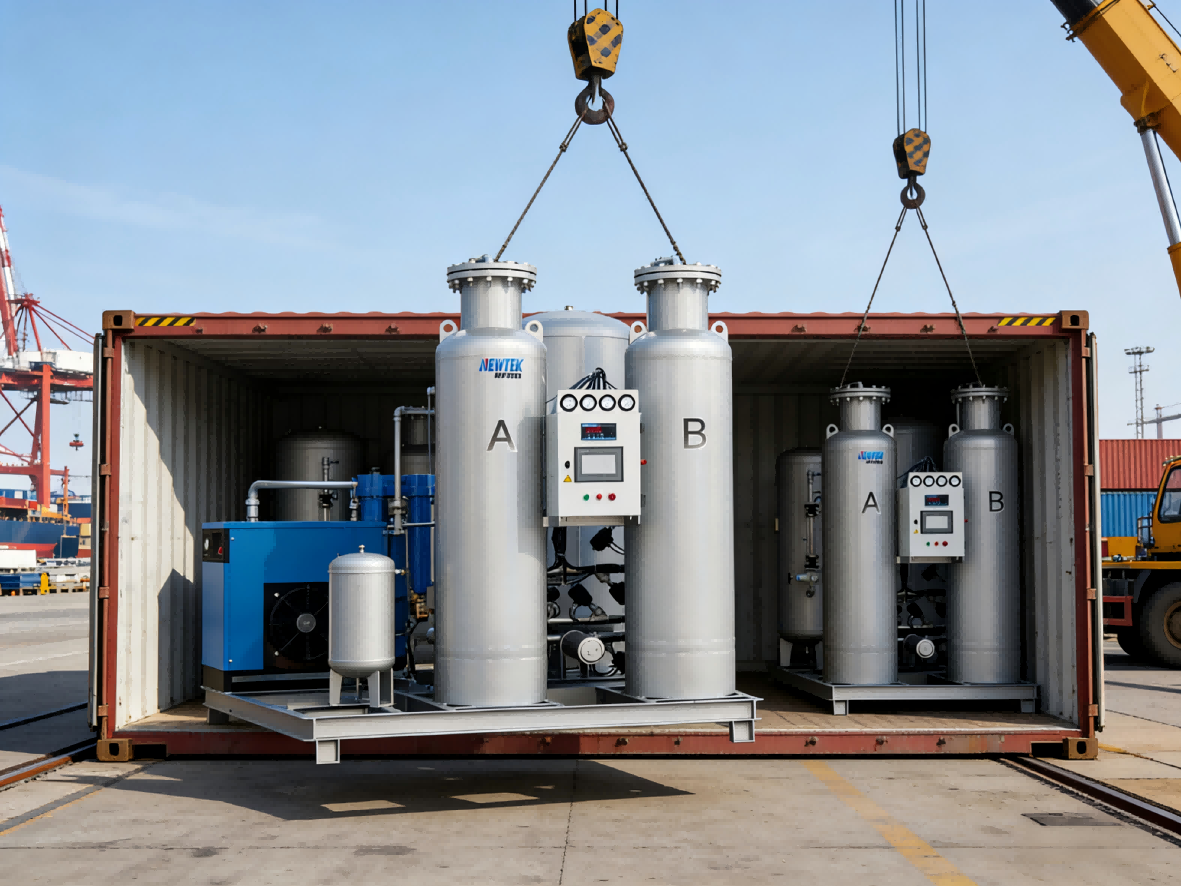

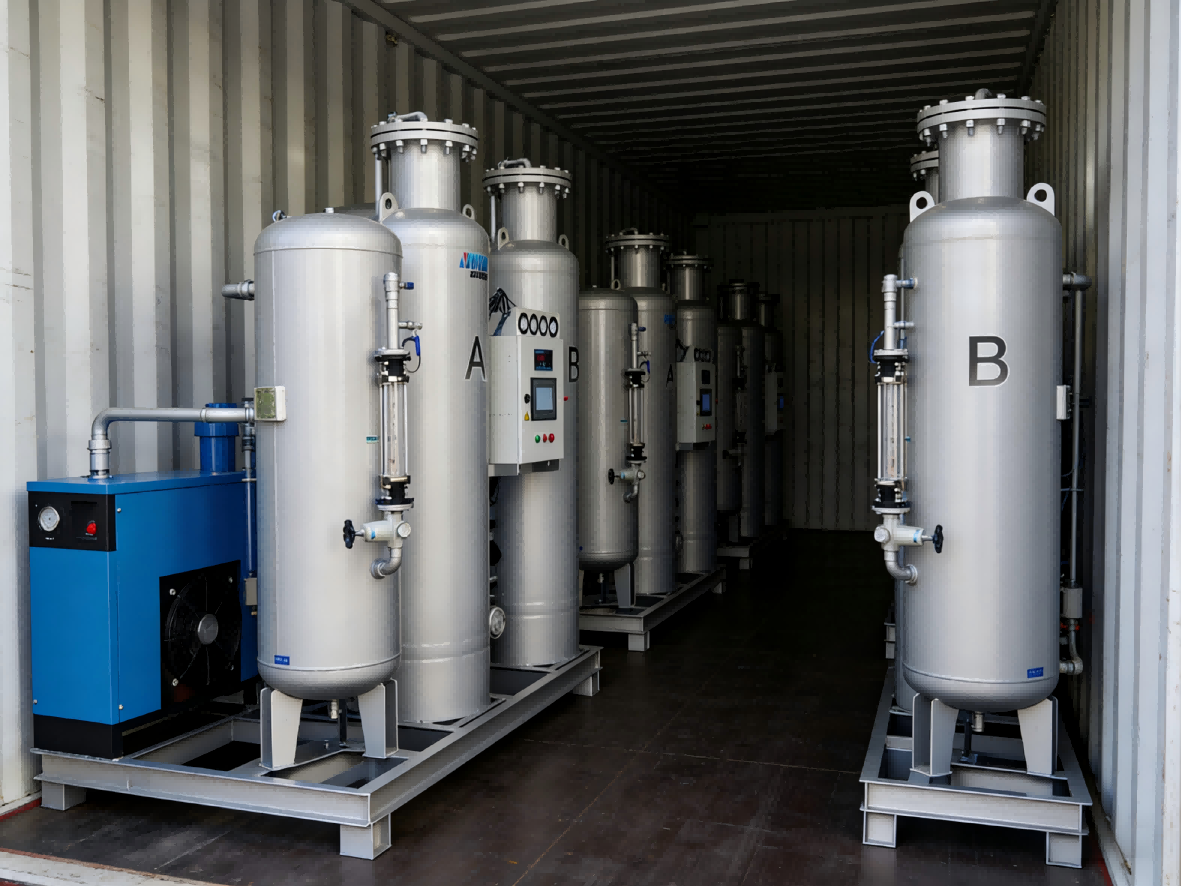

Packing
Inspect the interior and prepare for shipment

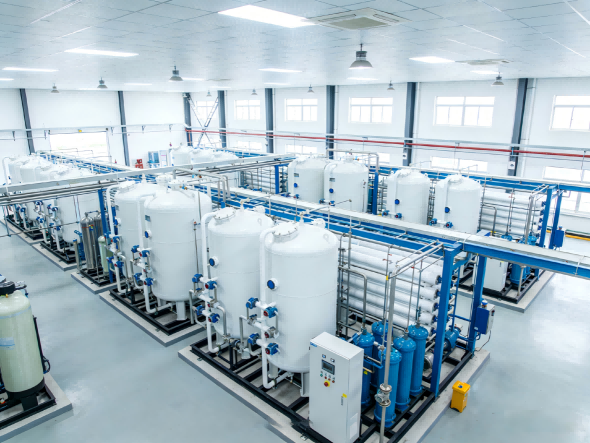

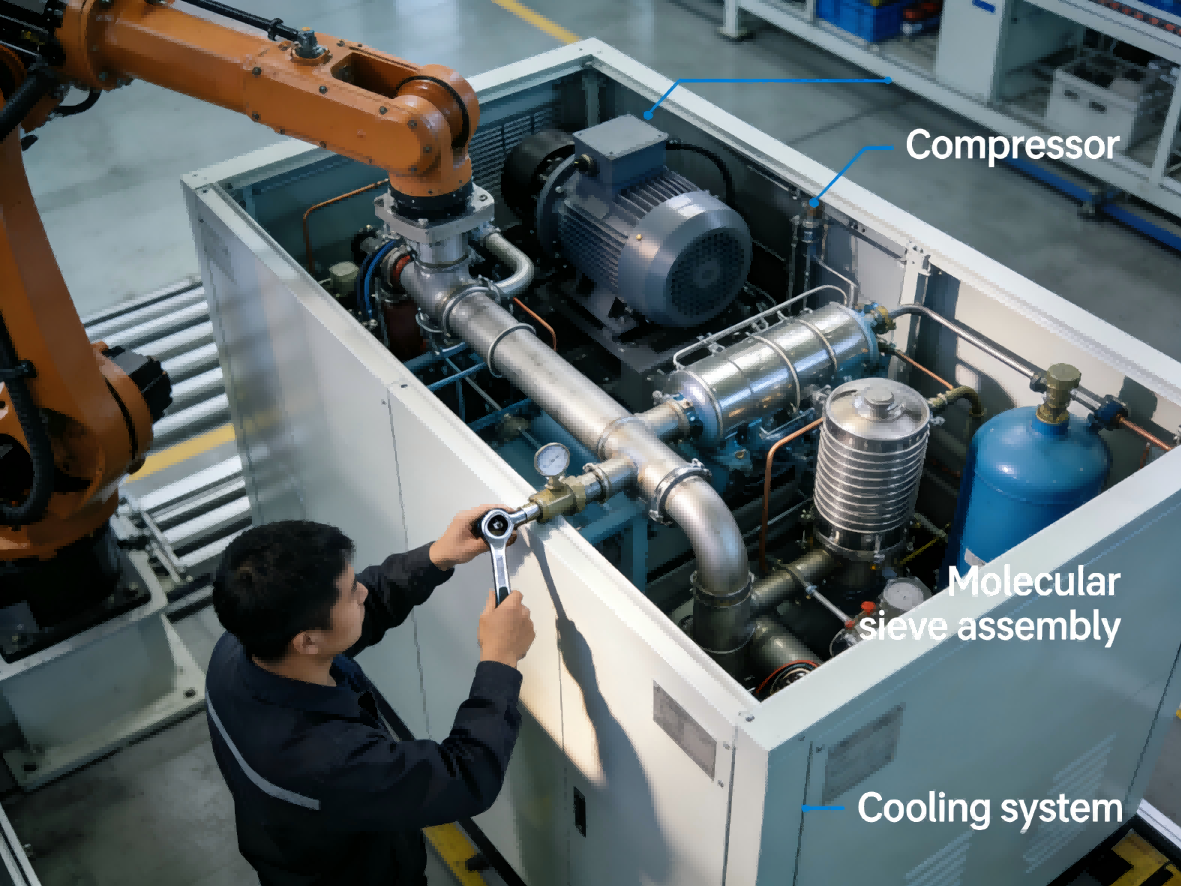

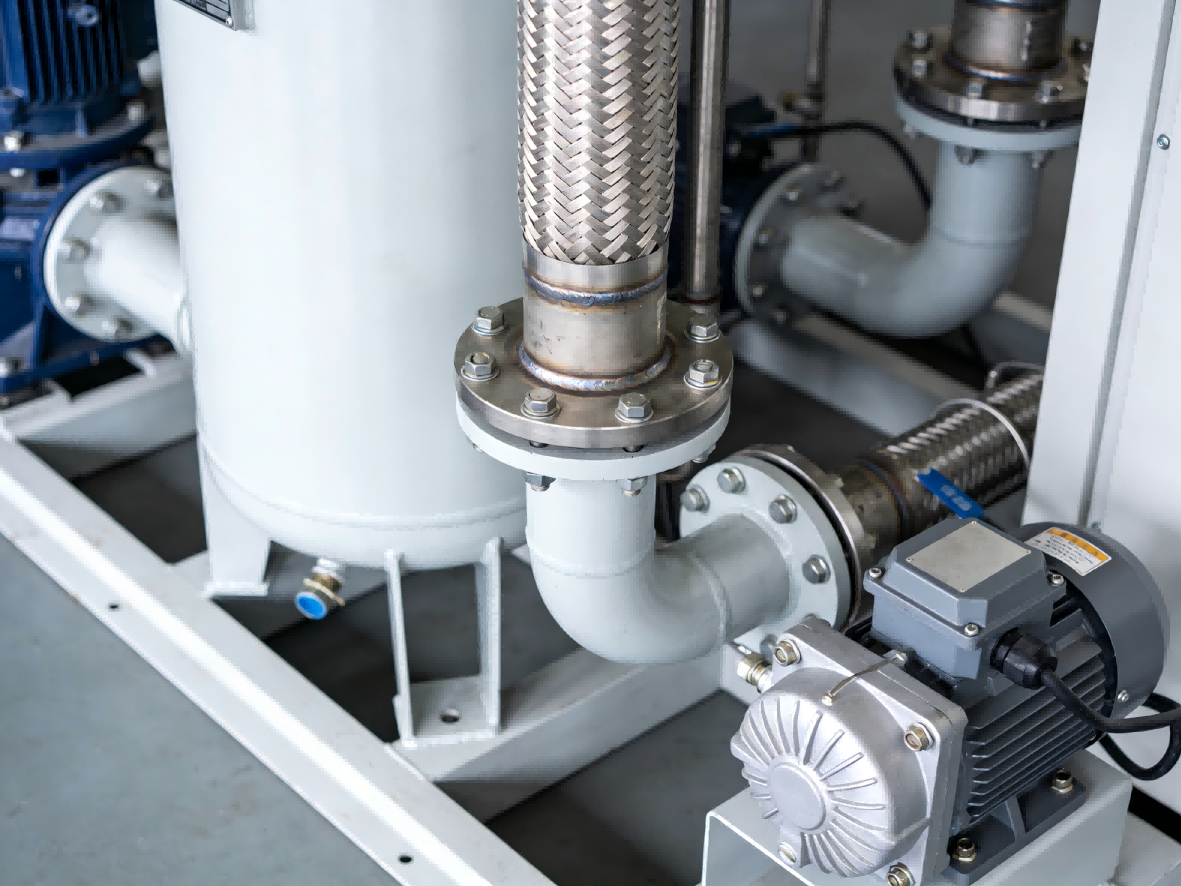

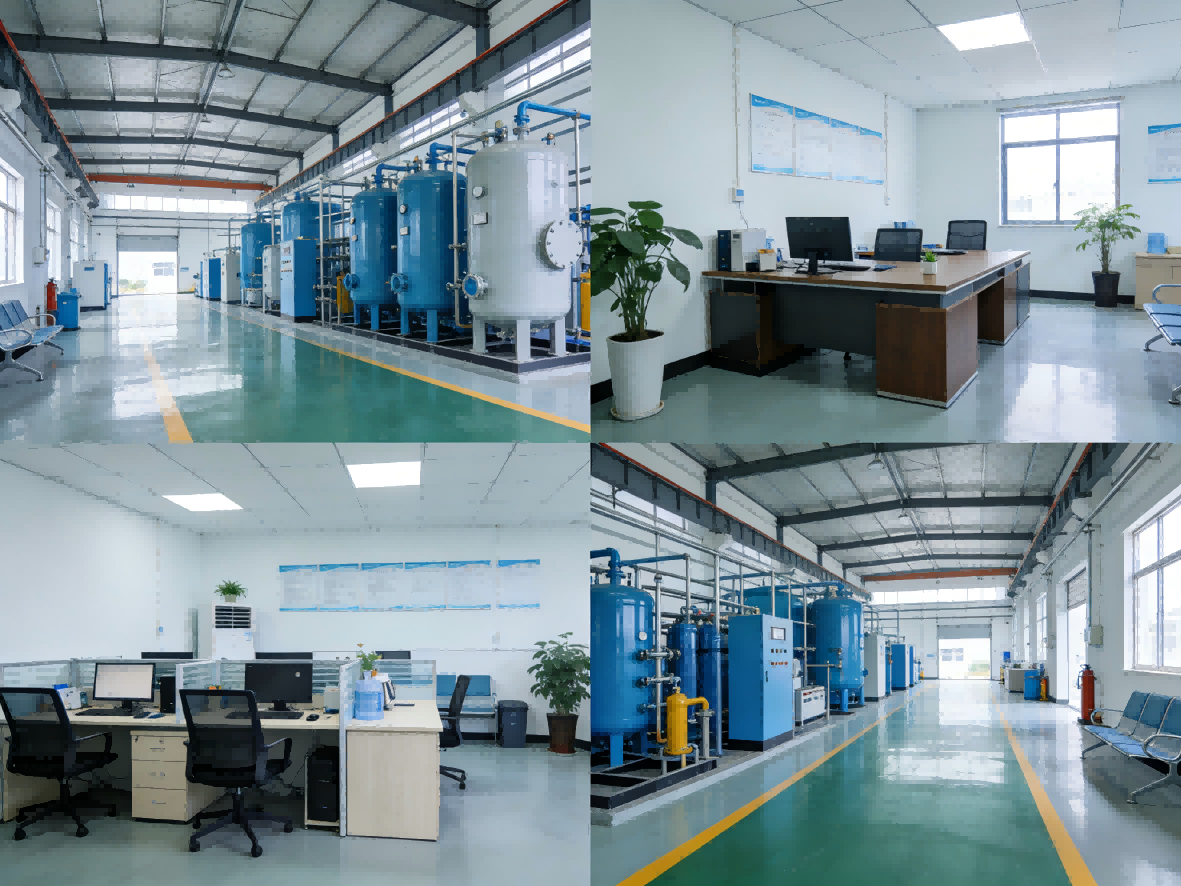

Manufacturing & Quality Control
NEWTEK PSA works with experienced manufacturing partners under strict quality supervision.
Each unit undergoes comprehensive inspection and testing before delivery to ensure performance consistency and operational safety.
NEWTEK Advantage
Technology Research
01
Engineering Design
02
Device Fabrication
03
Installation Testing
04
After-sale Service
05
PSA Oxygen Generator Advantages
PSA oxygen generator is a fully automatic equipment or directly producing oxygen from compressed air by using the zeolite molecular sieve as an adsorbent, utiizing the adsorption capacity of oxygen and nitrogen difference on the molecular sieve surface through the principle of pressure adsorption and declining pressure desorption.
Minimum pressure valve and bypass nozzle for quick start.
Avoid excessive gas and Oxygen molecular sieve damage.
Rugged design.
Continuous operation (24 hours a day, 7 days a week).
It will not stop operation due to interruption of air supply.
Remote start stop.
Modbus, Profibus Fieldbus and Ethernet.
MARTLINK is a smart star.
According to the required oxygen pressure and purity automatically adjusted.
The purity adjustment is extremelyconvenient.
Failed oxygen blowing.
Standby mode is maintained when oxygen is not needed.
Cycle Time Modulation Algorithm = Extended Cycle in Oxygen Demand Hours Time = Reduced air consump- tion during hours of oxygen demand.
High density.
Compact spring loaded.
Top/bottom balance.
Protected by a dedicated pressuresensor.
Just dry the compressed air supply.
Plug and play.
No special installation and commissioning are required.
Fully automatic and monitored oxygen sensors are standard.
Easy to maintain.
Provide up to 93%, 95%, 96%, 97%, 98%, 99%
Used in medical fields (such as wards, emergency rooms and operating rooms)

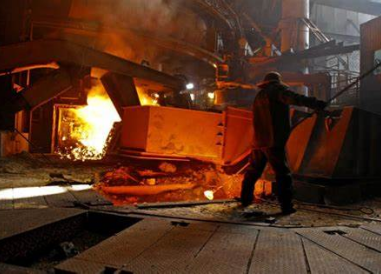

Industrial fields (such as mining, chemical industry, breeding, electronics, papermaking and other industrial processes)

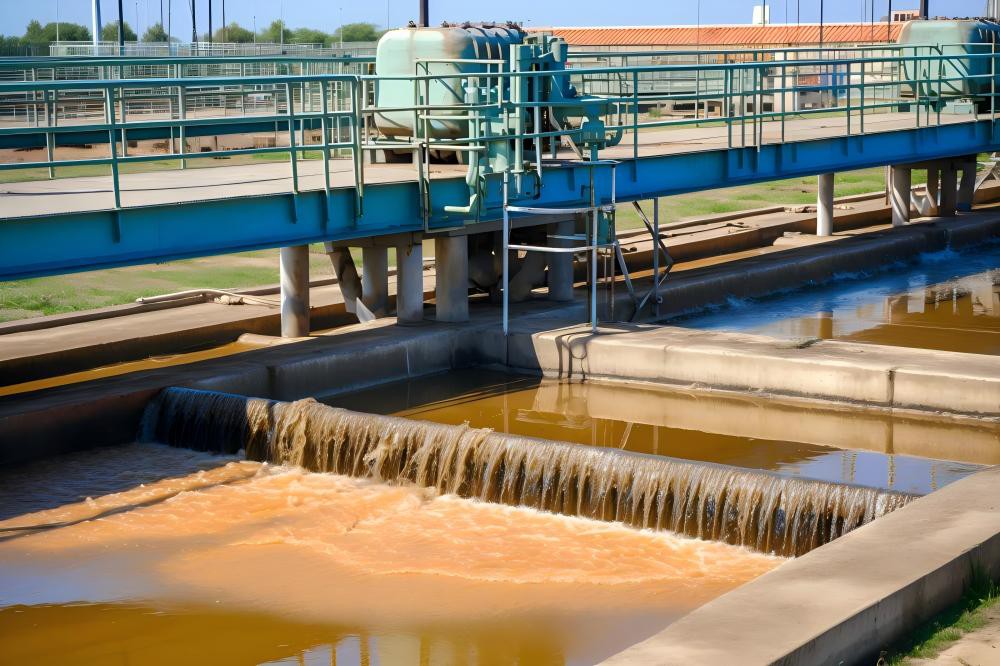

Environmental protection field (such as waste gas treatment, etc.)
Technical Indicators
Oxygen production：1~300Nm³/h (Standard State)
Oxygen purity：93%±3% (National standard oxygen content)
Oxygen pressure：0.01~0.5Mpa (Gauge pressure is stable and adjustable)
Oxygen dew point：-40℃~-75℃ (Atmospheric Dew Point)
|
Model |
Gas production (Nm³/h) |
Air consumption (Nm³/min) |
Imported nominal diameter DN DN(mm) |
Imported nominal diameter DN DN(mm) |
Air nominal diameter DN
|
Host L*W*H(mm) |
|
NTK93-1 |
1 |
0.2 |
DN15 |
DN15 |
NT0010 |
800 * 650*1720 |
|
NTK93-2 |
2 |
0.4 |
DN15 |
DN15 |
NT0010 |
950 * 950*1500 |
|
NTK93-3 |
3 |
0.6 |
DN15 |
DN15 |
NT0010 |
1050 * 900*1865 |
|
NTK93-5 |
5 |
1 |
DN20 |
DN15 |
NT0010 |
1450 * 900*1825 |
|
NTK93-10 |
10 |
2 |
DN32 |
DN15 |
NT0020 |
1450 * 900*1825 |
|
NTK93-15 |
15 |
3 |
DN40 |
DN25 |
NTAD-4-0 |
1800 * 950*1940 |
|
NTK93-20 |
20 |
4 |
DN40 |
DN25 |
NTAD-6-0 |
1850 *1025 * 2100 |
|
NTK93-25 |
25 |
5 |
DN50 |
DN25 |
NTAD-6-0 |
2000 *1050 * 2210 |
|
NTK93-30 |
30 |
6 |
DN50 |
DN25 |
NTAD-8-0 |
2000 *1050 * 2530 |
|
NTK93-50 |
50 |
10 |
DN65 |
DN25 |
NTAD-13-0 |
2200 *1250 * 2720 |
|
NTK93-60 |
60 |
12 |
DN65 |
DN40 |
NTAD-15-0 |
2250 *1300 * 2850 |
|
NTK93-80 |
80 |
16 |
DN80 |
DN40 |
NTAD-20-0 |
2350 *1550 * 3060 |
|
NTK93-100 |
100 |
20 |
DN100 |
DN40 |
NTAD-25-0 |
2500 *1600 * 3330 |
|
NTK93-120 |
120 |
24 |
DN100 |
DN40 |
NTAD-30-0 |
2600 *1700 * 3670 |
|
NTK93-150 |
150 |
30 |
DN150 |
DN40 |
NTAD-40-0 |
4700 *1500 * 2980 |
|
NTK93-180 |
180 |
36 |
DN200 |
DN40 |
NTAD-40-0 |
4700 *1600 * 3370 |
|
NTK93-200 |
200 |
40 |
DN200 |
DN40 |
NTAD-60-0 |
5000 *1600 * 3330 |
|
NTK93-240 |
240 |
48 |
DN200 |
DN50 |
NTAD-60-0 |
5200 *1700 * 3670 |
Get Exclusive PSA And VPSA Gas Solutions
Customer inquiry stage
Contract signing stage
Production and logistics stage
Installation and commissioning stage
After-sales service and parts purchase
Customer inquiry
Inquire about application scenarios, gas consumption requirements, etc., provide preliminary product introductions, quotations and technical information, and customize appropriate solutions.
Contract Signing
Confirm all key terms such as technical parameters, price, delivery time, etc. and sign the contract. Confirm the specific delivery location and installation requirements of the equipment.
Production and Logistics
Timely delivery to the customer's designated location. The logistics department is responsible for tracking the transportation process to ensure the safe arrival of the equipment.
Installation and commissioning
The technical staff will install and debug the equipment on site and provide customers with equipment operation training to ensure that customers can use the equipment proficiently.
Our Cases
PSA Oxygen Generator Case In Saudi Arabia
Oxygen Capacity: 100Nm3/Hr
Oxygen Purity: 93%+-3%
Application: Industrial Oxygen
PSA Oxygen Plant Case In Sri Lanka
Oxygen Capacity: 80Nm3/Hr
Oxygen Purity: 93%+-3%
Application: Industrial Oxygen
Oxygen Generation Plant Case In Turkmenistan
Oxygen Capacity: 120Nm3/Hr
Oxygen Purity: 93%+-3%
Application: Industrial Oxygen
Industrial oxygen generator in Iran
Oxygen Capacity: 60Nm3/Hr
Oxygen Purity: 93%+-3%
Application: Industrial Oxygen
Industrial oxygen generator in Indonesia
Oxygen Capacity: 150Nm3/Hr
Oxygen Purity: 93%+-3%
Application: Industrial Oxygen
Industrial Oxygen Generator Machine in Zambia
Oxygen Capacity: 150Nm3/Hr
Oxygen Purity: 93%+-3%
Application: Industrial Oxygen
Industrial oxygen generator in Syria
Oxygen Capacity: 180Nm3/Hr
Oxygen Purity: 93%+-3%
Application: Industrial Oxygen
Industrial oxygen generator in Zimbabwe
Oxygen Capacity: 240Nm3/Hr
Oxygen Purity: 93%+-3%
Application: Industrial Oxygen
