What is PSA nitrogen generator

The principle of PSA nitrogen production is to use the difference in the adsorption performance of molecular sieves to different gas molecules to separate nitrogen and oxygen through the process of pressurized adsorption and decompression desorption. Specifically, after the air passes through the filter to remove dust and impurities, it enters the compressor for compression and then passes through the molecular sieve adsorption tower. In this process, oxygen and carbon dioxide are adsorbed on the molecular sieve, while nitrogen passes through the molecular sieve into the outlet, and finally obtains nitrogen with a purity of 95% to 99.9%.



2 -

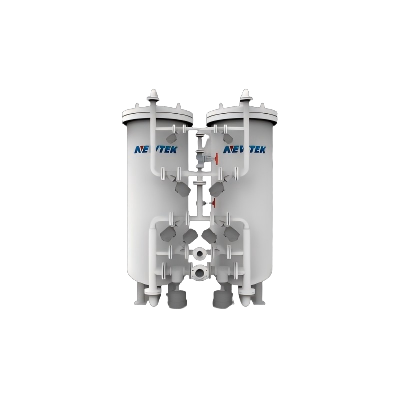

TWIN-TOWER SOLUTION

TWIN-TOWER

SOLUTION

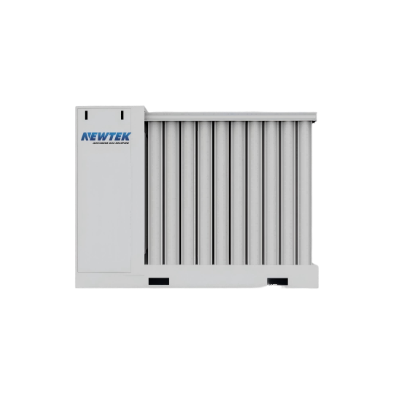

MODULAR SOLUTION

MODULAR

SOLUTION

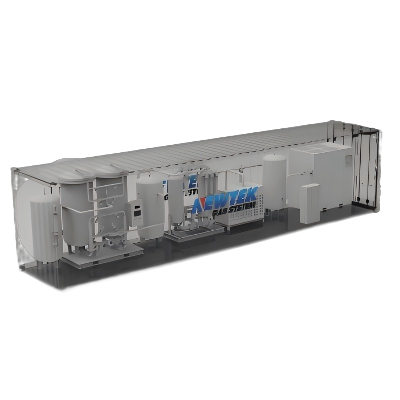

CONTAINER SOLUTION

CONTAINER

SOLUTION

PLC Panel

PLC Panel

PLC Panel
Process nitrogen anlyzer

Process nitrogen anlyzer ,Core components imported from Germany

Process nitrogen anlyzer ,Core components imported from Germany
Solenoid valves

Molecular Sieve from JALOX, UOP ,CMS

Molecular Sieve from JALOX, UOP ,CMS
product-1-1
valves

Germany pneumatic valves

Germany pneumatic valves
Germany pneumatic valves

Solenoid valves

Solenoid valves
15

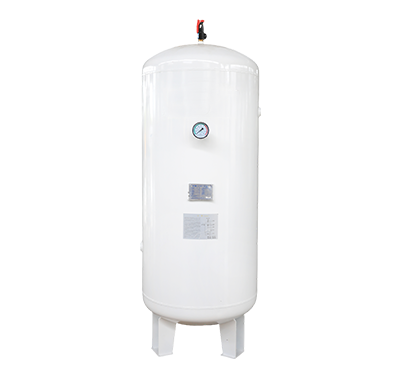

ASME standard air tank

ASME standard air tank
Oxygen Gas Generation Plant

PSA Nitrogen Generator 97%

Psa Oxygen Concentrator

PSA Nitrogen Generator 98%

Psa Medical Oxygen Plant

PSA Nitrogen Generator 99%

Medical Oxygen Generation Plant

PSA Nitrogen Generator 99.9%

PSA Modular Oxygen Generator

PSA Nitrogen Generator 99.5%

PSA Nitrogen Gas Generator

PSA Nitrogen Generator 99.99%

Modular Nitrogen Generator

PSA Nitrogen Generator 99.999%

VPSA Oxygen Generator

Container Nitrogen Generator

NTK Series PSA nitrogen generator
Model (Nm/h)
Nitrogen production		 (Nm/min)
Effective air consumption		 (DNmm)
Nletpipe size		 (DNmm)
Outet pipe diameter		 L*W*H (mm)
Host
NTK29-15 15 0.55 DN15 DN15 1250*600*1400
NTK29-20 20 0.73 DN20 DN15 1250*600*1850
NTK29-30 30 1.10 DN20 DN25 1450*700*1825
NTK29-50 50 1.83 DN25 DN40 1650*800*2070
NTK29-60 60 2.2 DN25 DN40 1750*825*2090
NTK29-80 80 2.9 DN32 DN40 1800*850*2420
NTK29-100 100 3.7 DN32 DN40 1800*850*2090
NTK29-120 120 4.4 DN40 DN40 1850*925*2100
NTK29-150 150 5.5 DN40 DN40 2000*950*2210
NTK29-180 180 6.6 DN50 DN40 2000*950*2530
NTK29-200 200 7.3 DN50 DN40 2100*1000*2660
NTK29-250 250 9.1 DN50 DN50 2100*1100*2680
NTK29-300 300 11.0 DN65 DN50 2250*1200*2850
NTK29-350 350 12.8 DN65 DN50 2250*1200*2850
NTK29-400 400 14.6 DN65 DN80 2350*1400*2980
NTK29-500 500 18.3 DN80 DN80 2350*1500*3240
NTK29-600 600 21.9 DN80 DN80 2500*1500*3400
NTK29-700 700 25.6 DN100 DN80 2600*1600*3670
NTK29-800 800 29.2 DN100 DN80 2950*1600*4010
NTK29-900 900 32.9 DN100 DN100 2950*1600*4420
NTK29-1000 1000 36.5 DN100 DN100 2950*1600*4340
NTK29-1200 1200 43.8 DN125 DN100 2950*1600*4740
NTK29-1500 1500 54.8 DN125 DN100 2950*1800*5020
NTK29-1800 1800 65.7 DN200 DN100 5900*1500*4420
NTK29-2000 2000 73.0 DN200 DN100 5900*1600*4340
NTK29-2500 2500 91.3 DN200 DN100 5900*1600*4940
NTK29-3000 3000 109.5 DN250 DN125 5900*1800*5020



NTK 39 Series PSA nitrogen generator：99.9%(Nitrogen Purity)
Mode (Nm³/h)
Nitrogen production		 (Nm3/min)
Fffective air consumption		 (DNmm)
Inlet pipe size		 (DNmm)
Outlet pipe diameter		 L*W*H(mm)
Host
NTK39-10 10 0.53 DN15 DN15 1250*600*1400
NTK39-15 15 0.79 DN20 DN15 1250*600*1850
NTK39-20 20 1.06 DN20 DN25 1450*700*1825
NTK39-30 30 1.59 DN25 DN25 1650*800*2070
NTK39-50 50 2.6 DN32 DN25 1800*850*1940
NTK39-60 60 3.2 DN40 DN40 1800*850*2290
NTK39-80 80 4.2 DN40 DN40 1850*925*2390
NTK39-100 100 5.3 DN50 DN40 2000*950*2530
NTK39-120 120 6.3 DN50 DN40 2100*1000*2660
NTK39-150 150 7.9 DN50 DN40 2100*1100*2800
NTK39-160 160 8.5 DN65 DN40 2200*1150*2720
NTK39-180 180 9.5 DN65 DN40 2250*1200*2750
NTK39-200 200 10.6 DN65 DN40 2250*1200*2850
NTK39-250 250 13.2 DN65 DN50 2350*1450*2980
NTK39-300 300 15.9 DN80 DN50 2350*1500*3370
NTK39-350 350 18.5 DN80 DN50 2500*1500*3400
NTK39-400 400 21.1 DN100 DN80 2600*1600*3670
NTK39-500 500 26.4 DN100 DN80 2950*1500*4320
NTK39-600 600 31.7 DN100 DN80 2950*1600*4440
NTK39-800 800 42.3 DN125 DN80 2950*1800*4820
NTK39-1000 1000 52.8 DN200 DN100 5900*1500*4320
NTK39-1200 1200 63.4 DN200 DN100 5900*1600*4440
NTK39-1500 1500 79.3 DN200 DN100 5900*1600*4940
NTK39-1800 1800 95.1 DN250 DN100 6300*2000*4800
NTK39-2000 2000 105.7 DN250 DN100 6300*2000*5200

PSA VPSA n2 Plant For Industrial

1
PSA nitrogen generator for chemical
2
PSA nitrogen generator for electronics industry
3
PSA nitrogen generator for Food Packaging
4
PSA nitrogen generator for metallurgy
5
PSA nitrogen generator for transport
6
PSA nitrogen generator for Metal Heat Treatment
7
PSA nitrogen generator for Tire nitrogen filling
8
PSA nitrogen generator For Glass Manufacturing

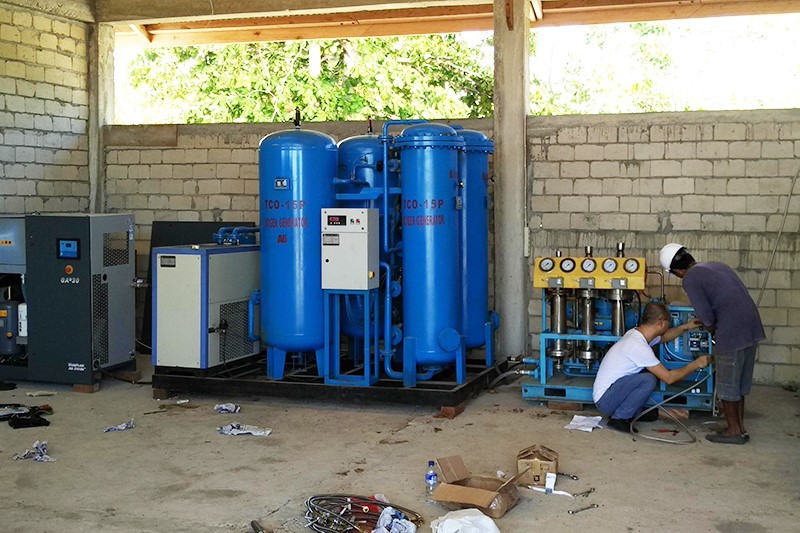

NEWTEK O2/N2 generator installation cases worldwide
