In line with the strictest medical standards in the industry, the entire oxygen generation process adopts closed-loop control, and is equipped with multi-level purification systems (including dust removal, dehumidification, deoiling and bactericidal filtration) to ensure that the produced oxygen is free of impurities, bacteria and oil fumes.
The equipment is equipped with automatic alarm systems for oxygen purity, pressure and temperature. Once an abnormal situation occurs, it will trigger an audible and visual alarm and automatically switch to backup oxygen supply mode, eliminating the risk of oxygen supply interruption during clinical treatment and ensuring the safety of patients' lives.
For medical institutions, it avoids the potential safety hazards of traditional cylinder oxygen transportation, storage and replacement, reduces the workload of medical staff in cylinder management, and improves the efficiency of clinical work; for patients, it ensures the continuity and purity of oxygen inhalation, laying a solid foundation for the effect of diagnosis and treatment.
Cost-Saving & Efficient, Reducing Operational Burden
Compared with the traditional mode of purchasing medical oxygen cylinders or liquid oxygen, NEWTEK Medical Use Container Oxygen Plant realizes on-site oxygen generation, which saves the costs of oxygen purchase, transportation, storage and cylinder maintenance. According to the calculation of actual application data of 500+ medical institutions, the equipment can reduce the oxygen supply cost of medical institutions by 30%-60% annually, effectively reducing the operational burden of hospitals, especially primary medical institutions with limited funds.
At the same time, the modular design of the equipment allows flexible expansion according to the oxygen demand of medical institutions. It can be expanded from 5m³/h to 100m³/h, avoiding the waste of resources caused by over-equipment or the shortage of oxygen supply caused by under-equipment, and realizing the optimal allocation of resources.
The product takes the standard container as the carrier, which can be transported by land, sea and air, and can be quickly deployed in various medical scenarios, including emergency medical rescue (such as natural disasters, public health emergencies), temporary medical points, remote primary health centers, and newly built hospitals. It only takes 24-72 hours from delivery to commissioning, which solves the problem of slow oxygen supply deployment in traditional medical institutions and ensures that oxygen can be supplied in time when it is needed most.
In addition, the equipment has strong environmental adaptability, and can work stably in harsh environments such as high altitude (up to 4500m), low temperature (-30℃) and high humidity (85% RH), meeting the oxygen supply needs of medical institutions in different regions and climates.
Primary Health Center Solution
Pain Points: Limited funds, small oxygen demand, lack of professional oxygen management personnel, difficult transportation of oxygen cylinders in remote areas. Solution: Provide small and medium-sized container oxygen plants (5-20m³/h), which are compact in structure, easy to operate and maintain, and can be operated by ordinary medical staff after simple training. The equipment is equipped with an intelligent control system, which can realize automatic oxygen generation, automatic pressure regulation and automatic alarm, reducing the management cost. At the same time, the on-site oxygen generation mode avoids the difficulty of cylinder transportation in remote areas, ensuring the stable oxygen supply for daily diagnosis and treatment (such as oxygen inhalation, emergency rescue).
Tertiary Hospital Solution
Pain Points: Large oxygen demand, high requirements for oxygen purity and stability, need to connect with the central oxygen supply system, and high requirements for equipment reliability. Solution: Provide large-scale container oxygen plants (30-100m³/h), which can be connected with the hospital's central oxygen supply system to realize unified oxygen supply for the whole hospital. The equipment adopts dual-core PSA oxygen generation technology, which ensures the stability of oxygen production and purity, and is equipped with a backup oxygen generation unit. Even if one unit fails, the other unit can be started immediately to avoid oxygen supply interruption. At the same time, the intelligent monitoring system can realize real-time monitoring of oxygen purity, pressure and other parameters, and the data can be connected to the hospital's intelligent management platform, facilitating the unified management of the hospital.
Emergency Medical Rescue Solution
Pain Points: Urgent oxygen demand, harsh on-site environment, need for rapid deployment and mobile use. Solution: Provide mobile container oxygen plants (10-30m³/h) with lightweight design and strong mobility, which can be loaded on emergency vehicles or transported by air and sea. The equipment can be started quickly without complex installation, and can provide stable oxygen supply for emergency rescue on site (such as earthquake, flood, public health emergencies). It is equipped with a portable oxygen outlet, which can directly supply oxygen to patients, improving the efficiency of emergency rescue.
Standardized Equipment Specifications & Technical Parameters
PSA Oxygen Generation System: Imported molecular sieve (high adsorption capacity, long service life, ≥8 years), dual-tower alternating operation, stable oxygen production.
Medical-Grade Purification System: Multi-level filtration (dust removal, dehumidification, deoiling, bactericidal), ensuring oxygen purity meets medical standards.
Intelligent Control System: PLC touch screen control, automatic oxygen generation, automatic pressure regulation, automatic alarm, real-time data monitoring, support for remote operation and maintenance.
Safety Protection System: Oxygen purity alarm, pressure alarm, temperature alarm, overcurrent protection, leakage protection, backup oxygen interface.

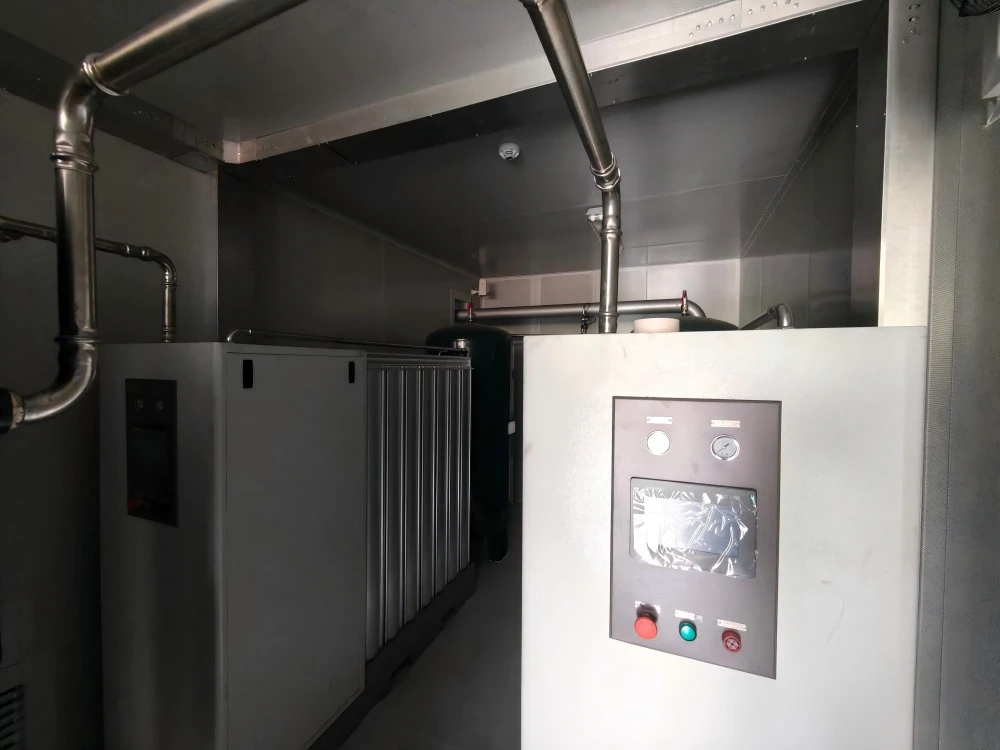

Container Carrier: Standard 20ft/40ft container, corrosion-resistant, waterproof, dustproof, suitable for outdoor use, with built-in ventilation and heat dissipation system.
Auxiliary Equipment: Air compressor, dryer, buffer tank, oxygen storage tank, all of which meet medical-grade standards and are matched with the oxygen generation system.
Standardized Technical Parameters
|
Parameter Item |
Standard Specification |
Customizable Range |
|---|---|---|
|
Oxygen Production Capacity |
5-100m³/h |
5-200m³/h |
|
Oxygen Purity |
93%±3% |
90%-99.5% |
|
Outlet Pressure |
0.4-0.6MPa |
0.3-1.0MPa |
|
Power Supply |
380V/50Hz, 3-phase 4-wire |
110V/60Hz, 220V/50Hz (customizable) |
|
Energy Consumption |
≤0.8kWh/m³ O₂ |
According to oxygen production capacity |
|
Operating Temperature |
-20℃~45℃ |
-30℃~50℃ (with cold-proof/high-temperature modification) |
|
Container Size |
20ft (6m×2.4m×2.6m)/40ft (12m×2.4m×2.6m) |
Customizable according to site size |
|
Noise Level |
≤60dB |
≤55dB (low-noise modification) |
NEWTEK's Commitment & Service
As a responsible enterprise focusing on the medical oxygen generation field, NEWTEK not only provides high-quality standardized equipment and customized solutions, but also provides full-cycle after-sales service to ensure that medical institutions can use the equipment with peace of mind, which is another embodiment of our altruistic concept:
Pre-sales Service: Professional technical team provides on-site investigation, demand analysis and program design to ensure that the solution is fully suitable for the actual needs of medical institutions.
In-sales Service: Provide free installation, commissioning and operation training to ensure that medical staff can master the use method of the equipment proficiently.
After-sales Service: 24-hour online technical support, regular on-site maintenance and inspection, quick supply of spare parts, and a 2-year quality guarantee period (extensible), solving the worries of medical institutions in equipment use.
Why Choose NEWTEK?
For medical institutions, choosing NEWTEK Medical Use Container Oxygen Plant is not only choosing a high-quality oxygen generation equipment, but also choosing a reliable partner who focuses on solving industry pain points and creating altruistic value. We have 15 years of experience in the medical oxygen generation field, serving 1000+ medical institutions in more than 50 countries and regions around the world, with rich industry experience and mature technical strength.
We adhere to the concept of "patient-centered, medical institution-oriented", take solving the pain points of oxygen supply in the medical industry as our responsibility, and continuously innovate technology and optimize solutions to provide more stable, efficient, safe and cost-saving oxygen supply services for the global medical industry, and work together to guard the life and health of patients.
