Designed Around the Reality of Intensive Fish Farming
Fish farms operate very differently from factories.
Oxygen demand is influenced by:
- Stocking density
- Fish size
- Feeding periods
- Water temperature
- Biomass growth
- Seasonal changes
These fluctuations require an oxygen supply system capable of operating continuously rather than relying on intermittent cylinder replacement.
The containerized oxygen station provides a stable oxygen source throughout the production cycle, allowing farmers to maintain dissolved oxygen levels more consistently.
Why a Container Instead of a Conventional Equipment Room?
Many aquaculture projects are constructed in rural or coastal areas where building permanent utility rooms increases both cost and construction time.
The containerized design serves as a complete equipment enclosure, providing:
- Weather protection
- Dust protection
- Corrosion-resistant installation environment
- Organized equipment layout
- Simplified project deployment
Because the oxygen station is factory assembled and tested before shipment, on-site installation is significantly simplified.
Twin-Tower PSA System: The Core of Continuous Oxygen Production
Inside the container is a twin-tower Pressure Swing Adsorption (PSA) oxygen generator, designed for uninterrupted oxygen production.
The two adsorption towers alternate automatically:
- One tower generates oxygen while nitrogen is adsorbed by the molecular sieve.
- The second tower regenerates by releasing the adsorbed nitrogen.
- The process then switches automatically, allowing oxygen production to continue without interruption.
This alternating operating cycle enables a stable oxygen supply suitable for aquaculture systems that require continuous aeration and oxygen injection throughout the day.

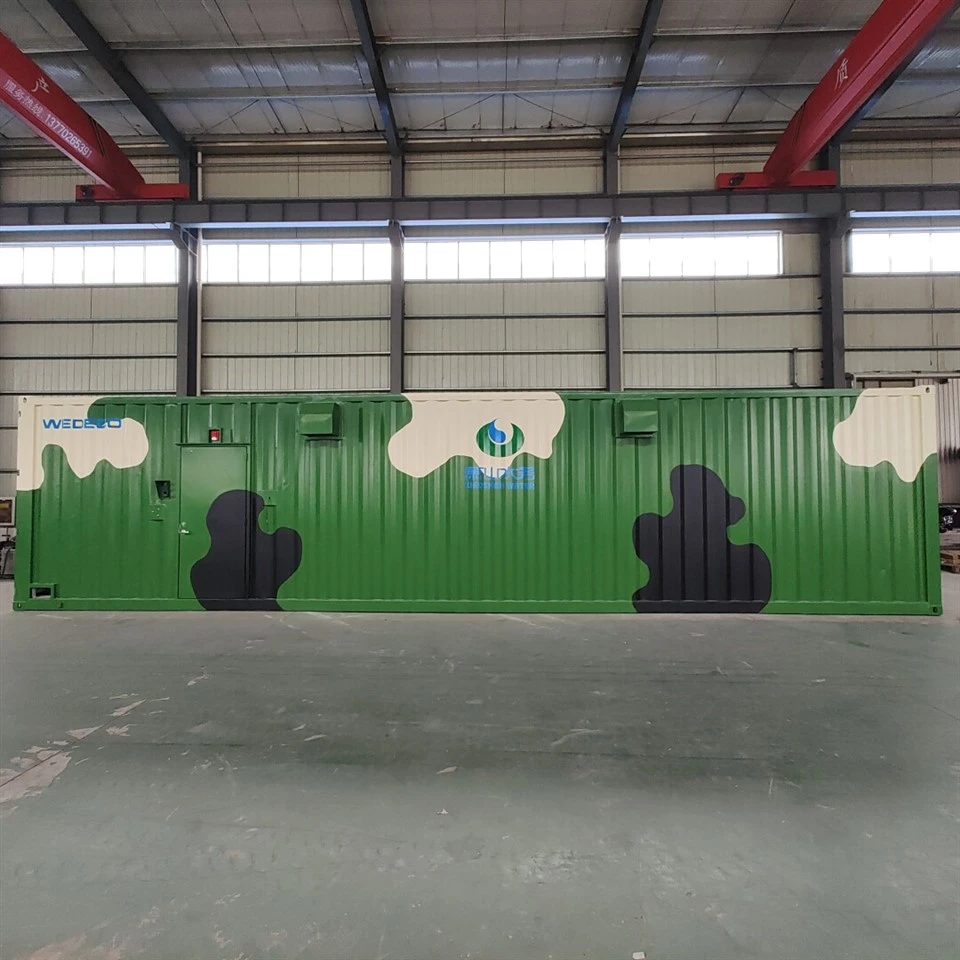

Built as a Complete Outdoor Oxygen Station
Rather than installing individual pieces of equipment separately, the container integrates all essential systems required for oxygen production.
The station typically includes:
- Twin-tower PSA oxygen generator
- Air compressor
- Air treatment system
- Oxygen receiver tank
- PLC control cabinet
- Oxygen monitoring instruments
- Internal piping and electrical wiring
- Ventilation and cooling system
All equipment is arranged to facilitate inspection, maintenance, and reliable long-term operation in outdoor environments.
Stable Oxygen Supports Stable Fish Performance
In intensive aquaculture, oxygen availability directly affects fish performance.
A stable oxygen supply helps support:
- Consistent feeding activity
- Improved feed conversion efficiency
- Reduced stress caused by oxygen fluctuations
- Better water quality management
- More stable stocking conditions
By producing oxygen continuously on-site, the system reduces dependence on cylinder deliveries while providing a more predictable oxygen source during normal farming operations.
Suitable for Multiple Aquaculture Systems
The containerized oxygen station can be integrated into different oxygen delivery methods, including:
Recirculating Aquaculture Systems (RAS)
Supplying oxygen to oxygen cones, low-head oxygenators, or dissolved oxygen injection systems.
Raceway Farms
Providing centralized oxygen for multiple raceways through a pipeline network.
Pond Aquaculture
Supporting oxygen supplementation during periods of high biomass or elevated water temperatures.
Hatcheries
Providing stable oxygen for incubation systems, fry tanks, and nursery facilities where oxygen fluctuations can significantly affect survival rates.
Simplified Daily Operation
The system is designed for automatic operation with minimal manual intervention.
Operators can monitor key operating parameters through the PLC interface, including:
- Oxygen purity
- Oxygen pressure
- System operating status
- Alarm notifications
Routine maintenance is concentrated within the container, allowing technicians to service filters, valves, and instrumentation without exposing equipment to outdoor conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Oxygen Production Technology | Twin-Tower PSA |
| Oxygen Purity | 90–95% |
| Oxygen Capacity | Customized (Based on Fish Biomass) |
| Oxygen Pressure | 0.3–1.0 MPa |
| Installation Type | Containerized Outdoor Station |
| Operation | Fully Automatic Continuous Operation |
| Control System | PLC Intelligent Control |
| Cooling | Forced Ventilation / Optional Air Conditioning |
Typical Installation Locations
The containerized station is suitable for installation near:
- RAS equipment buildings
- Pond farming areas
- Raceway systems
- Hatchery facilities
- Fish grading areas
- Central oxygen distribution stations
Its standalone structure minimizes the need for additional construction while allowing convenient connection to existing oxygen pipelines.
Why Intensive Fish Farms Choose Containerized Oxygen Stations
Compared with conventional indoor oxygen plants or cylinder-based oxygen supply, a containerized station offers:
- Independent outdoor installation
- Reduced construction requirements
- Better protection for critical equipment
- Simplified transportation to remote farming sites
- Continuous oxygen production using twin-tower PSA technology
- Centralized management of the entire oxygen production system
For farms operating year-round with high stocking densities, this configuration provides a reliable oxygen infrastructure capable of supporting long-term aquaculture production.
