How Small-Scale Aquaculture Farms Choose Cost-Effective PSA Oxygen

For small-scale aquaculture farms, oxygen supply is not simply a question of how much oxygen can be produced. The more important question is whether the oxygen generation system can provide stable oxygen at the required purity, pressure, and flow while keeping energy consumption, maintenance requirements, and operational complexity under control.

This is particularly important for farms using recirculating aquaculture systems (RAS), biofloc technology, intensive fish tanks, shrimp nurseries, hatcheries, and other high-density production systems. As stocking density increases, oxygen demand becomes more closely connected with feeding rates, biomass, water temperature, biofilter activity, and water circulation.

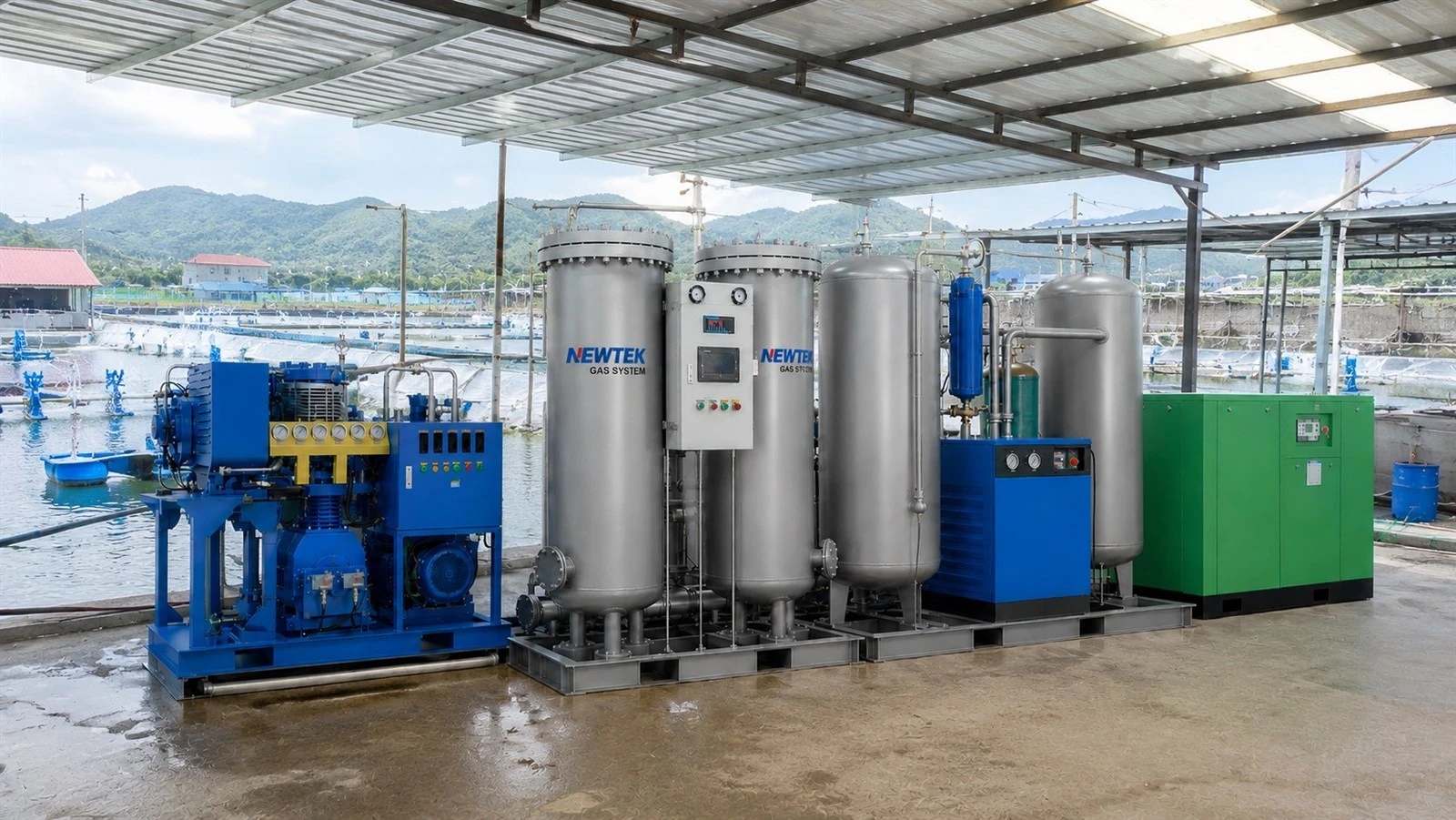

A PSA oxygen generator can produce oxygen directly from compressed atmospheric air, reducing dependence on externally supplied oxygen. However, selecting a cost-effective system requires more than comparing equipment specifications. A generator with excessive capacity may create unnecessary energy and equipment requirements, while an undersized system may struggle during peak oxygen demand.

For small-scale farms, the objective should be to select a PSA oxygen system that matches actual oxygen demand, operates efficiently under real farm conditions, and provides sufficient flexibility for future production changes.

Start With the Farm's Oxygen Demand

The first step in selecting a PSA oxygen generator is determining how much oxygen the farm actually needs.

Oxygen demand varies considerably between aquaculture systems. A low-density pond has very different oxygen requirements from a high-density RAS tank. Similarly, a nursery operation may have a different demand profile from a grow-out facility.

Several factors should be considered:

Total fish or shrimp biomass

Stocking density

Feeding rate

Water temperature

Species oxygen requirements

Biofilter oxygen consumption

Water circulation rate

Oxygen transfer efficiency

Daily operating pattern

Future biomass increase

The oxygen requirement should be calculated based on the maximum expected operating condition, rather than only the current average demand.

For example, a farm may have relatively low oxygen consumption during the early production stage. As fish biomass increases, however, oxygen consumption rises. The biofilter may also require additional oxygen as the biological load increases.

Therefore, a PSA system selected only according to the initial stocking level may become insufficient later in the production cycle.

At the same time, excessive oversizing should be avoided. Installing a much larger oxygen generator than the farm needs can increase the equipment footprint, compressed-air requirements, electrical load, and initial system complexity.

The most practical approach is to determine the normal oxygen demand, peak demand, and realistic future demand before selecting the generator capacity.

Understand the Difference Between Oxygen Flow and Oxygen Purity

Oxygen purity is one of the most visible parameters in a PSA oxygen generator specification, but it should not be considered independently.

For aquaculture applications, the farm needs a combination of:

oxygen purity + oxygen flow + outlet pressure + oxygen transfer efficiency

A generator may provide a certain oxygen concentration, but the farm must still be able to transfer that oxygen efficiently into the water.

If the oxygenation equipment is poorly matched to the generator, increasing oxygen purity alone may not improve overall oxygen utilization.

For this reason, buyers should first identify the requirements of the downstream oxygenation system.

Different systems may use:

Fine-bubble diffusers

Oxygen cones

Oxygenation columns

Venturi injectors

Low-head oxygenators

Packed-bed oxygen transfer systems

Other gas-liquid contact equipment

The required pressure and flow depend on the selected oxygen-transfer method.

This means the PSA generator should be specified as part of the complete oxygen system rather than as an independent piece of equipment.

Do Not Automatically Choose the Highest Oxygen Purity

Higher oxygen purity may appear attractive during equipment selection, but higher purity is not automatically equivalent to better economic performance.

PSA oxygen production involves compressed air, adsorption cycles, pressure changes, and regeneration of molecular sieve material. Operating conditions can change depending on the target oxygen concentration and required production rate.

For a small aquaculture farm, the appropriate oxygen purity should therefore be based on the actual biological and oxygenation requirements.

The key question is:

What oxygen concentration provides sufficient oxygen transfer for the farm without creating unnecessary energy or equipment requirements?

This approach prevents the farm from paying for performance that does not provide a practical operational benefit.

The supplier should provide performance data showing the relationship between oxygen purity, oxygen flow, pressure, and power consumption.

This is much more useful than comparing purity percentages alone.

Specific Energy Consumption Is a Critical Parameter

A PSA oxygen generator uses electricity primarily because atmospheric air must first be compressed.

The compressor is therefore one of the most important components affecting long-term operating efficiency.

When comparing different systems, the farm should not focus only on the compressor motor rating. Instead, it should examine how much electricity is required to produce a given quantity of usable oxygen.

A useful engineering parameter is:

Specific energy consumption = electrical energy consumed ÷ oxygen produced

This value allows different PSA systems to be compared on a common basis.

For example, one generator may have a relatively large compressor but produce oxygen efficiently because of its PSA cycle design and air-management system. Another machine may use a smaller compressor but consume more energy per unit of oxygen because of inefficient operation.

The comparison should therefore consider the complete system, including:

Compressor

PSA adsorption vessels

Air dryer

Air filters

Control valves

Oxygen buffer tank

Control system

Cooling system

For farms operating oxygen generators for long periods every day, small differences in specific energy consumption can become significant over the equipment's operating life.

The Compressor Should Be Evaluated Separately

The compressor is often the largest energy-consuming component in a PSA oxygen system.

Its performance affects both oxygen production and overall system reliability.

The compressor should provide sufficient compressed-air flow at the pressure required by the PSA process. Insufficient air supply can reduce oxygen production and destabilize the adsorption cycle.

However, excessive compressor capacity can also be undesirable because it increases electrical load and equipment requirements.

When evaluating a PSA package, the farm should ask the supplier about:

Compressor type

Rated air flow

Working pressure

Motor power

Cooling method

Expected operating hours

Maintenance requirements

Operating temperature limits

Compressor protection functions

The relationship between compressor performance and PSA oxygen output is particularly important.

A supplier should ideally provide complete operating data rather than only stating the compressor motor size.

Air Pretreatment Directly Affects PSA Performance

Compressed air entering the PSA system contains moisture, oil aerosols, dust, and other contaminants.

Molecular sieve adsorbent is sensitive to contamination, particularly excessive moisture and oil.

Therefore, an appropriate air-treatment system is essential.

A typical configuration may include:

Air compressor → air receiver → dryer → coalescing filter → fine filter → PSA oxygen generator

Depending on the compressor and system design, additional filtration or separation equipment may be required.

For small farms, this part of the system is sometimes overlooked because the PSA oxygen generator itself receives most of the attention.

However, poor air pretreatment can result in:

Reduced oxygen production

Declining oxygen purity

Shortened molecular sieve service life

Increased maintenance

Unstable PSA operation

For farms located in tropical or humid environments, moisture management becomes especially important.

The installation environment and compressed-air quality should therefore be considered when selecting the PSA system.

Consider the Farm's Oxygen Demand Pattern

Oxygen consumption is rarely constant throughout an aquaculture operation.

Demand may increase during:

Feeding periods

High stocking density

Biomass growth

High water temperature

Low dissolved oxygen conditions

Biofilter activity peaks

Fish handling

Grading

Harvesting

Transportation

This creates an important distinction between average oxygen demand and peak oxygen demand.

A PSA generator designed exactly around average consumption may not provide sufficient oxygen during short-term peaks.

However, sizing the generator entirely around the highest instantaneous demand may result in unnecessary equipment capacity.

A better approach may be to combine PSA generation with an oxygen buffer tank.

The generator provides relatively stable oxygen production, while the buffer tank absorbs short-term differences between oxygen generation and consumption.

This configuration can improve system flexibility without requiring the PSA generator itself to be sized for every short-duration demand peak.

Oxygen Buffer Storage Can Improve System Stability

An oxygen buffer tank is particularly useful when the farm's oxygen demand changes throughout the day.

The buffer tank can provide several functions:

Stabilize oxygen pressure

Handle short-term demand peaks

Reduce rapid fluctuations in generator loading

Provide temporary oxygen during PSA cycle changes

Support emergency operation for a limited period

The required buffer capacity depends on the oxygen demand profile and the operating characteristics of the PSA generator.

There is no universal tank size suitable for every farm.

A small hatchery with relatively stable oxygen consumption may require limited buffering, while a high-density RAS facility with large variations in oxygen demand may benefit from greater buffer capacity.

The buffer tank should therefore be designed according to actual process requirements rather than selected simply because it is included in a standard equipment package.

Match PSA Capacity to Future Biomass Growth

Small farms often expand gradually.

A facility may begin with a relatively small number of tanks and add production capacity later. This creates a challenge when selecting the initial oxygen generator.

There are two common approaches.

The first is to select a generator based mainly on current demand. This reduces unnecessary capacity during the early stage but may require additional equipment when the farm expands.

The second is to select a moderately larger system that can support realistic future production.

The better approach depends on the farm's expansion plan.

If biomass is expected to increase significantly, the PSA system should be evaluated for its ability to accommodate higher demand.

This does not necessarily mean purchasing a very large generator immediately. Modular system design can allow additional oxygen-generation capacity to be added later.

For small and medium farms, scalability can therefore be more valuable than maximum initial capacity.

Evaluate Oxygen Transfer Efficiency

Generating oxygen is only one part of the oxygenation process.

The oxygen must eventually move from the gas phase into the water.

The effectiveness of this process depends on factors such as:

Water depth

Gas bubble size

Contact time

Water temperature

Dissolved oxygen concentration

Gas flow

Pressure

Diffuser characteristics

Oxygenation equipment design

For example, simply increasing oxygen flow does not necessarily result in proportionally higher dissolved oxygen if the oxygen-transfer equipment cannot efficiently use the additional gas.

This is why PSA generator selection should be coordinated with oxygenation system design.

A well-designed system aims to maximize the amount of oxygen actually transferred into the water rather than simply maximizing the amount of oxygen generated.

This distinction is particularly important when evaluating operating efficiency.

RAS Farms Have Additional Oxygen Requirements

Recirculating aquaculture systems have a special oxygen demand structure.

Oxygen is consumed by the cultured animals, but it is also required by the biological filtration system.

Nitrifying bacteria in biofilters require oxygen to support nitrification. If oxygen availability decreases, biological filtration performance can be affected, potentially resulting in ammonia and nitrite management problems.

Therefore, RAS oxygen demand should not be calculated from fish biomass alone.

The system should consider:

fish oxygen consumption + biofilter oxygen consumption + oxygen transfer losses + operational reserve

The oxygen requirement can also change as feed input and biomass increase.

For this reason, PSA oxygen systems used in RAS applications should be evaluated according to the complete biological process.

Biofloc Systems Require Stable Oxygen Availability

Biofloc aquaculture relies heavily on microbial activity.

The microorganisms involved in biofloc formation and organic matter processing consume oxygen, while the cultured animals also require oxygen.

As feeding rates increase, microbial oxygen demand can increase as well.

This creates a situation in which oxygen demand may change relatively quickly.

For biofloc farms, the PSA system should therefore provide stable oxygen production and sufficient control flexibility.

An oxygen buffer can be useful when demand fluctuates rapidly.

The oxygen distribution network should also be designed so that different culture tanks receive an appropriate and stable oxygen supply.

Consider Reliability, Not Just Efficiency

A cost-effective oxygen system must remain available when the farm needs it.

Aquaculture is a biological process, so oxygen interruptions can have consequences that are very different from an ordinary industrial equipment shutdown.

A PSA oxygen system should therefore include appropriate monitoring and protection functions.

Useful monitoring points include:

Oxygen purity

Oxygen pressure

Oxygen flow

Compressor pressure

Compressor temperature

PSA operating status

Alarm status

Automatic controls can reduce the need for continuous manual intervention.

For intensive aquaculture facilities, an independent emergency oxygen source should also be considered.

This may be a cylinder system or another backup oxygen source that can operate if the PSA system or electrical supply becomes unavailable.

The purpose of backup oxygen is not to replace the PSA generator but to protect the biological system during unexpected interruptions.

Maintenance Requirements Should Be Part of the Selection

A PSA oxygen generator is a process system containing mechanical, pneumatic, electrical, and adsorption components.

Routine maintenance may involve:

Compressor servicing

Air-filter replacement

Dryer inspection

Drainage-system maintenance

Valve inspection

Oxygen analyzer calibration

Electrical inspection

Molecular sieve condition monitoring

The actual maintenance interval depends on equipment design and operating conditions.

When comparing suppliers, farms should ask for a maintenance schedule before purchasing.

It is also useful to identify which components are standard industrial parts and which are proprietary.

A system based heavily on proprietary components may be more difficult to maintain if the farm is located far from the equipment manufacturer.

For remote aquaculture sites, availability of spare parts and technical support should be considered as part of the overall system design.

Installation Environment Can Affect Operating Efficiency

Small aquaculture farms are frequently located in environments where temperature, humidity, dust, and ventilation can vary considerably.

The PSA system should therefore be installed in a suitable equipment area.

Important installation considerations include:

Ventilation

The compressor generates heat during operation. Insufficient ventilation can increase room temperature and affect equipment performance.

Humidity Control

High humidity increases the burden on compressed-air drying and filtration.

Dust Protection

Dust can increase filter loading and contaminate the compressed-air system.

Electrical Stability

The compressor and control system require a stable electrical supply.

Maintenance Access

Filters, valves, compressor components, and analyzers should remain accessible for inspection and servicing.

A well-designed installation environment can improve reliability without requiring complicated additional equipment.

Compare Complete System Performance, Not Individual Components

When evaluating quotations from different PSA suppliers, comparing individual components can be misleading.

For example, one supplier may provide a lower compressor motor rating while another specifies a higher rating. This does not automatically indicate which system is more efficient.

The farm should instead compare the complete operating condition:

This method provides a much clearer picture of the actual suitability of the equipment.

Avoid Oversizing and Undersizing

Both oversizing and undersizing can create problems.

Undersized PSA System

An undersized generator may operate continuously near its maximum output.

Potential consequences include:

Insufficient oxygen during peak demand

Limited capacity for biomass growth

Increased dependence on emergency oxygen

Reduced operational flexibility

Oversized PSA System

An excessively large generator can create:

Higher equipment requirements

Larger compressor capacity

Increased installation space

Greater electrical infrastructure requirements

More complicated operation

The objective is therefore to select a capacity that covers normal and peak operating requirements while maintaining a practical reserve.

For many small farms, modularity and buffering can provide a better solution than simply selecting the largest available generator.

A Practical Selection Method for Small Aquaculture Farms

A small farm can evaluate PSA oxygen equipment using the following technical sequence.

Determine Maximum Biomass

Calculate the maximum expected fish or shrimp biomass during the production cycle.

Estimate Biological Oxygen Demand

Consider animal respiration based on species, biomass, temperature, and production conditions.

Add Biofilter Demand

For RAS and systems using biological filtration, include oxygen consumption associated with nitrification.

Determine Oxygen Transfer Requirements

Identify the diffuser, oxygen cone, injector, or other oxygenation equipment being used.

Define Required Flow and Pressure

The PSA generator should meet the downstream oxygenation system's actual operating requirements.

Select Appropriate Oxygen Purity

Choose a purity level according to the process instead of automatically selecting the highest available specification.

Compare Specific Energy Consumption

Compare the electricity required to produce an equivalent quantity of oxygen.

Evaluate Air Pretreatment

Check the compressor, dryer, filters, condensate management, and air-quality requirements.

Determine Buffer Requirements

Evaluate whether an oxygen buffer tank is necessary to handle peak demand.

Plan Emergency Oxygen

For high-density systems, establish an independent backup oxygen supply.

Check Maintenance and Spare Parts

Make sure routine service can be performed at the farm location.

Consider Future Expansion

Select a system that can support realistic increases in biomass and production capacity.

What Makes a PSA Oxygen System Truly Cost-Effective?

For a small aquaculture farm, cost-effectiveness comes from the relationship between performance and operating requirements.

A practical PSA oxygen system should:

Match the farm's actual oxygen demand

Provide stable oxygen production

Use electricity efficiently

Maintain appropriate oxygen purity

Deliver the required pressure

Protect the molecular sieve with suitable air pretreatment

Handle short-term demand fluctuations

Allow reasonable future expansion

Require manageable maintenance

Provide adequate monitoring

Include an emergency oxygen strategy

The cheapest equipment at the purchasing stage may not be the most economical over its operating life.

Likewise, the highest-capacity or highest-purity system is not necessarily the best choice.

The better approach is to optimize the entire oxygen supply chain.

PSA Oxygen Should Be Evaluated as a Complete Oxygenation Solution

The final performance of an aquaculture oxygen system depends on more than the PSA generator.

The complete process can be viewed as:

Atmospheric air → compressed air → air treatment → PSA oxygen generation → oxygen buffering → oxygen distribution → oxygen transfer → dissolved oxygen in water

Each stage affects the next.

If the compressor is inefficient, energy consumption increases.

If the air treatment is inadequate, PSA performance can deteriorate.

If the oxygen generator is undersized, the farm may experience insufficient supply during peak demand.

If the distribution system is poorly designed, pressure losses can reduce oxygen availability.

If the oxygen-transfer equipment is inefficient, a portion of the generated oxygen may not be effectively transferred into the culture water.

Therefore, the correct objective is not simply to purchase a PSA oxygen generator.

The objective is to develop an oxygen-generation and oxygen-transfer system that operates reliably under the farm's real biological and environmental conditions.

Conclusion

For small-scale aquaculture farms, choosing a cost-effective PSA oxygen generator requires a technical evaluation of the entire production system.

The starting point should always be oxygen demand. From there, the farm should determine the required oxygen purity, flow, pressure, oxygen-transfer method, compressor capacity, air-treatment requirements, buffer storage, and backup strategy.

Energy efficiency is particularly important because the compressor and associated air-treatment equipment operate throughout the life of the system. Specific energy consumption provides a practical method for comparing different PSA configurations without relying on equipment purchase price alone.

Maintenance, spare-parts availability, installation conditions, and future biomass growth should also be included in the selection process. For intensive RAS, biofloc, nursery, and high-density tank systems, stable oxygen availability is often more important than simply maximizing oxygen purity or generator capacity.

Ultimately, a cost-effective PSA oxygen solution is one that produces the right amount of oxygen, at the right purity and pressure, with appropriate energy consumption and reliable operation.

For small farms, the most practical configuration is often not the largest system available. It is a properly sized PSA oxygen generator combined with suitable air pretreatment, oxygen buffering, efficient oxygen-transfer equipment, automatic monitoring, and an independent backup oxygen source where biological risk requires it.

This approach allows the farm to control oxygen production according to its actual operating conditions while maintaining the flexibility needed as stocking density and production capacity increase.
